Garage Storage Shelves Plans PDF | 8ft 3-Tier 2x4 Shelving Unit | DIY Workshop Shelf Plans

Build a spacious 8 ft garage storage shelf with these easy-to-follow DIY woodworking plans.

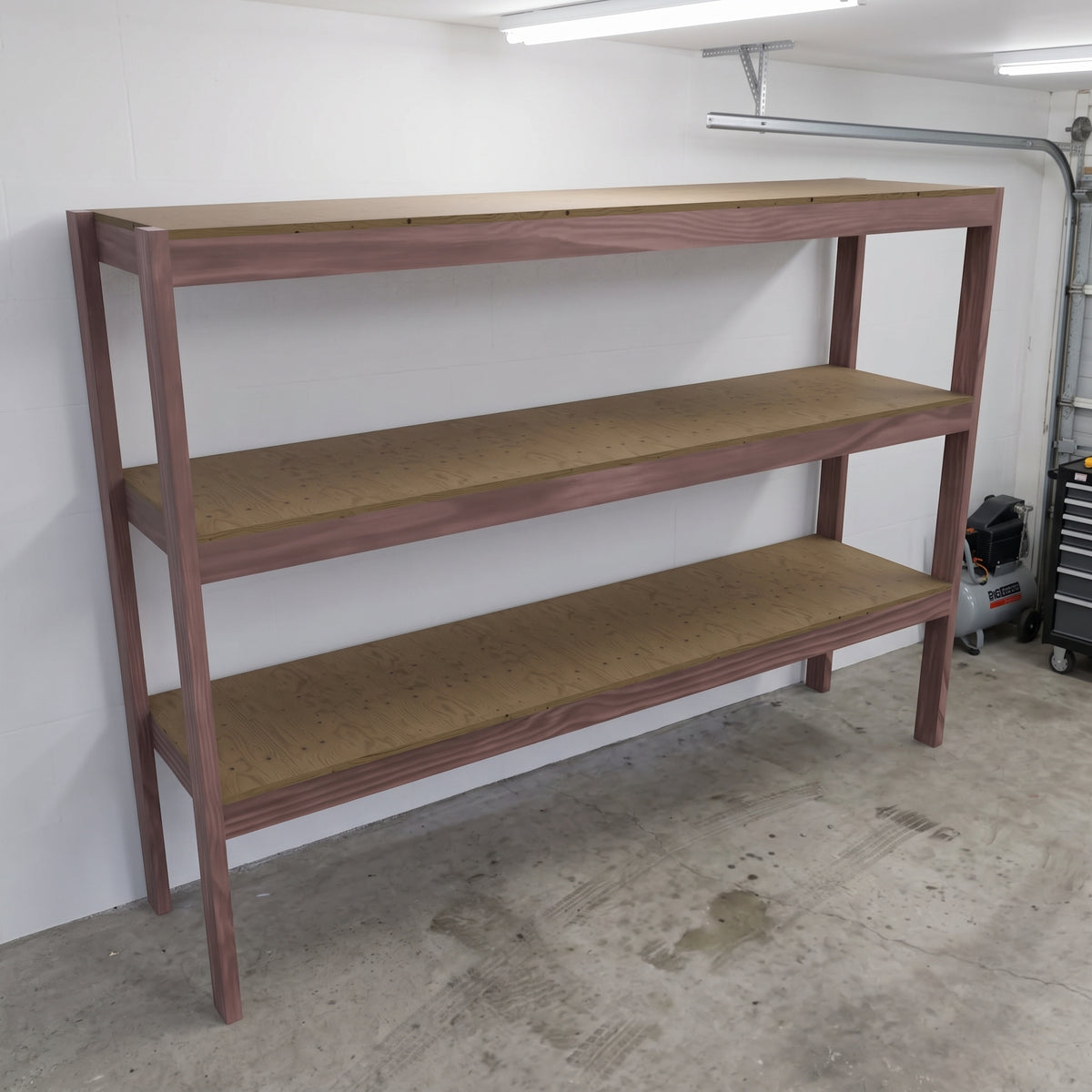

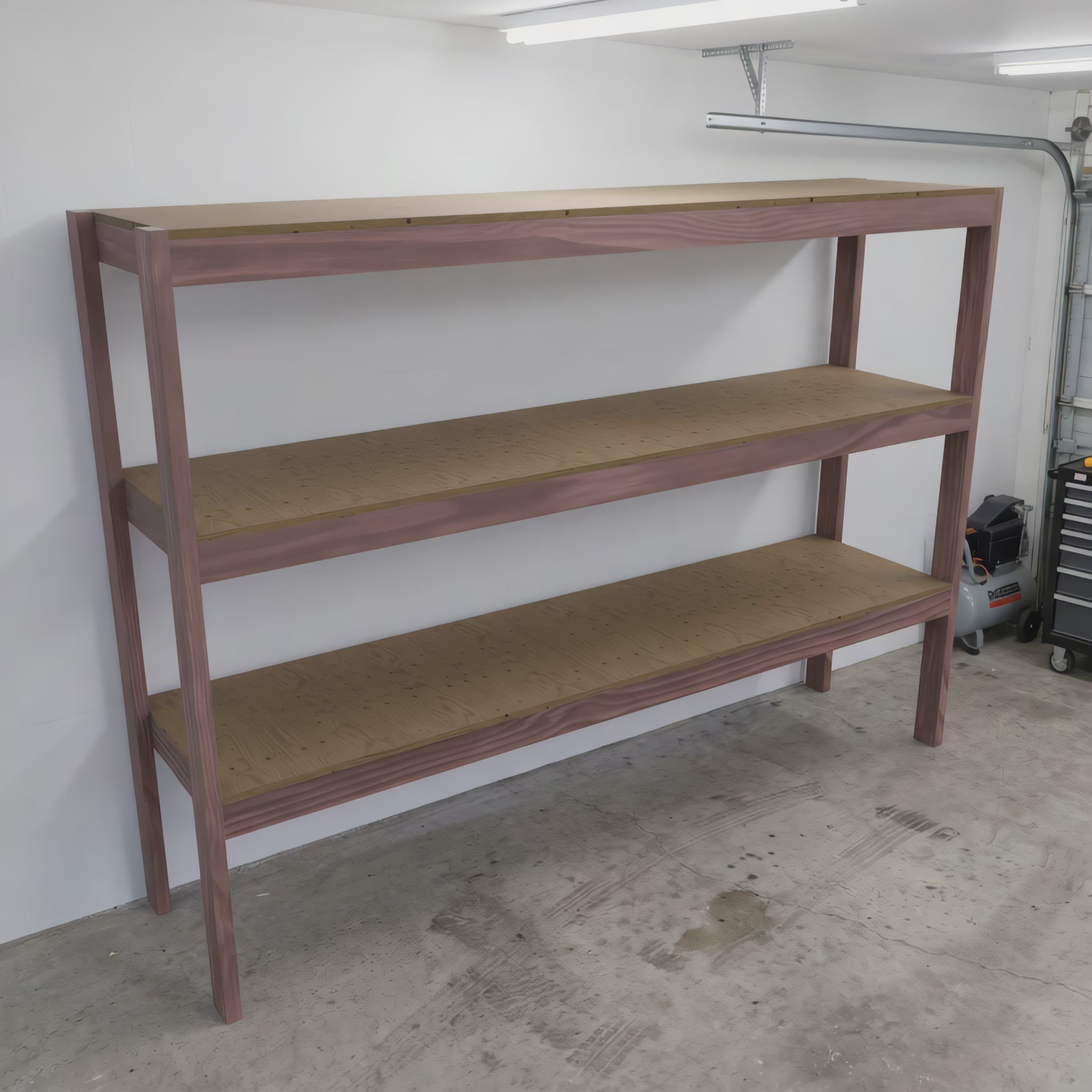

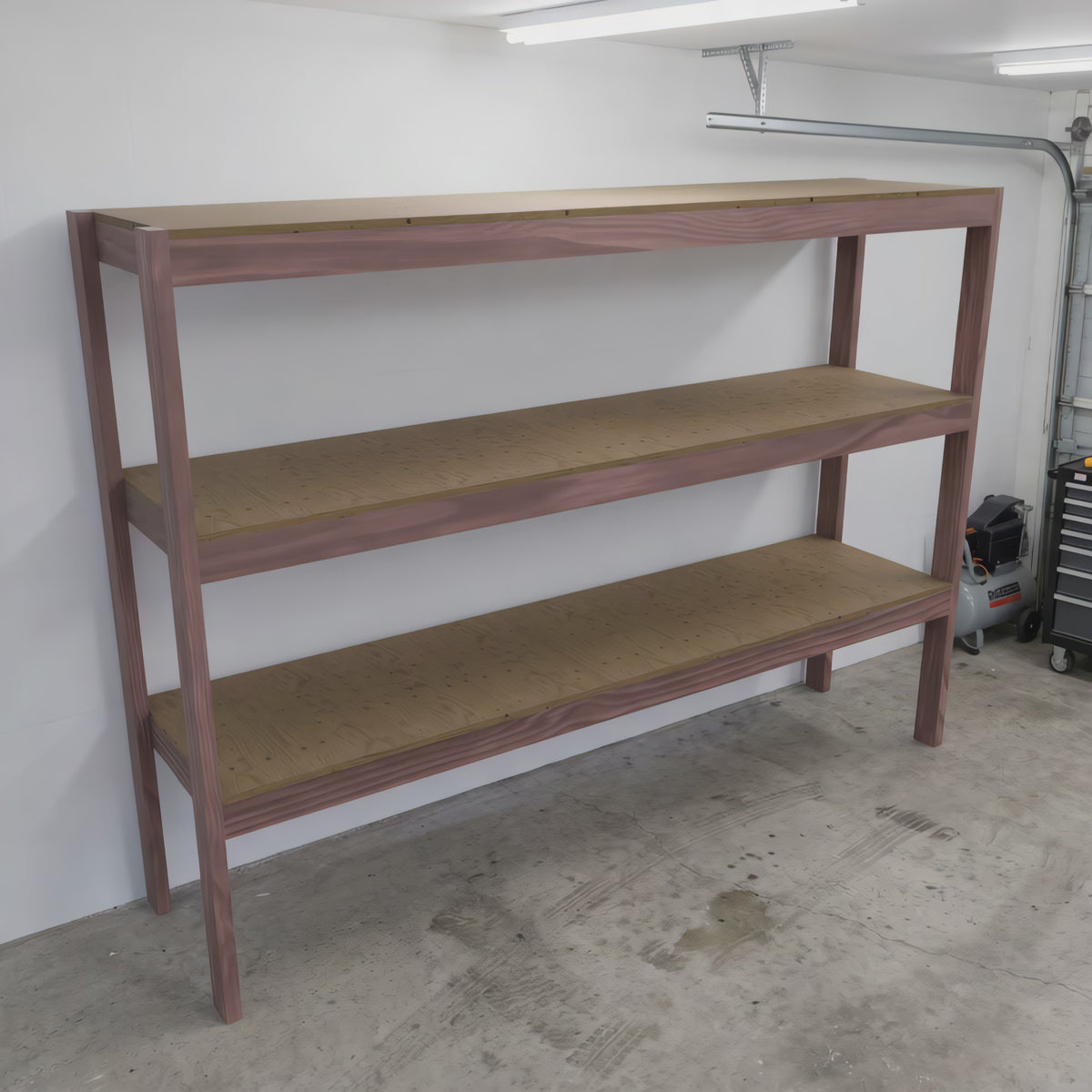

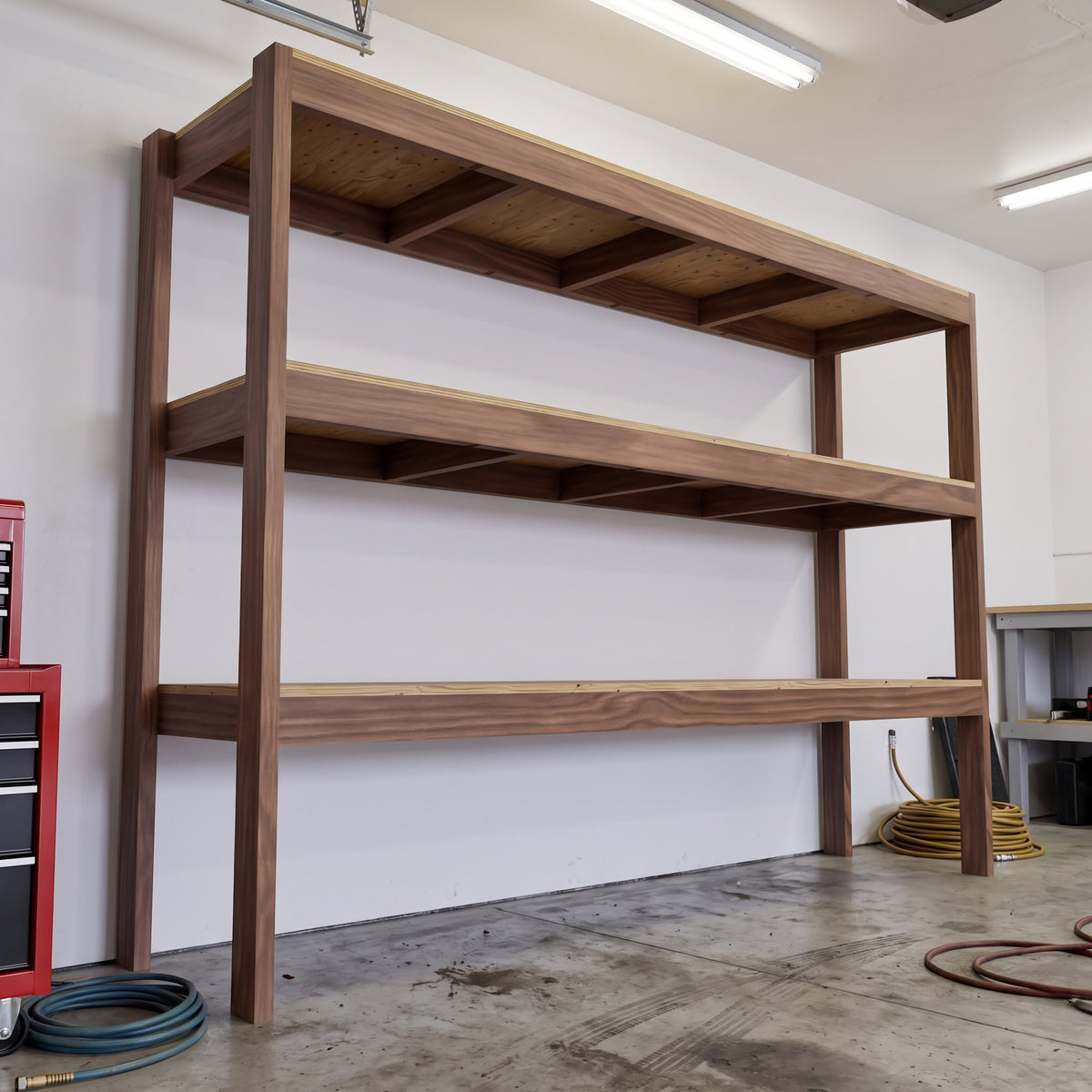

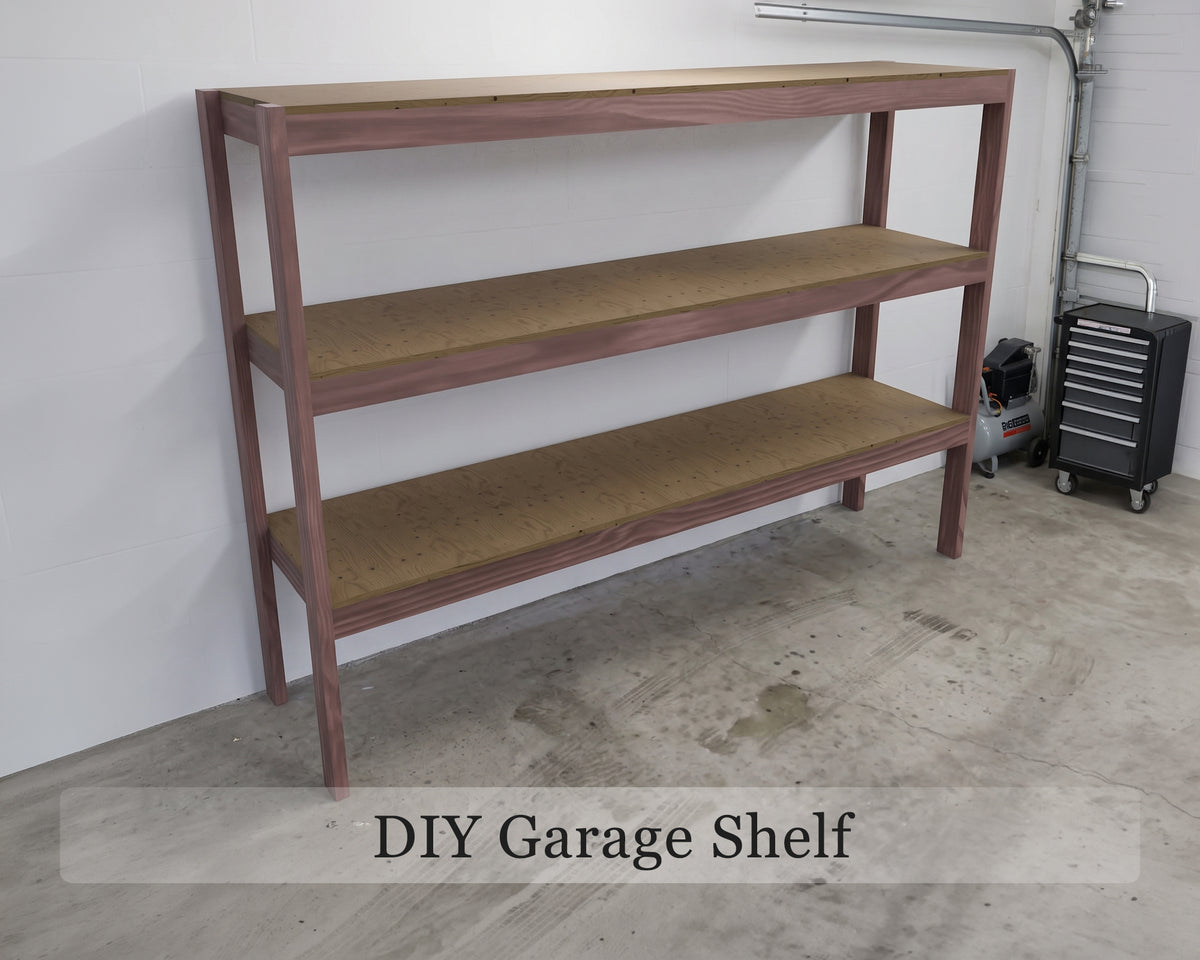

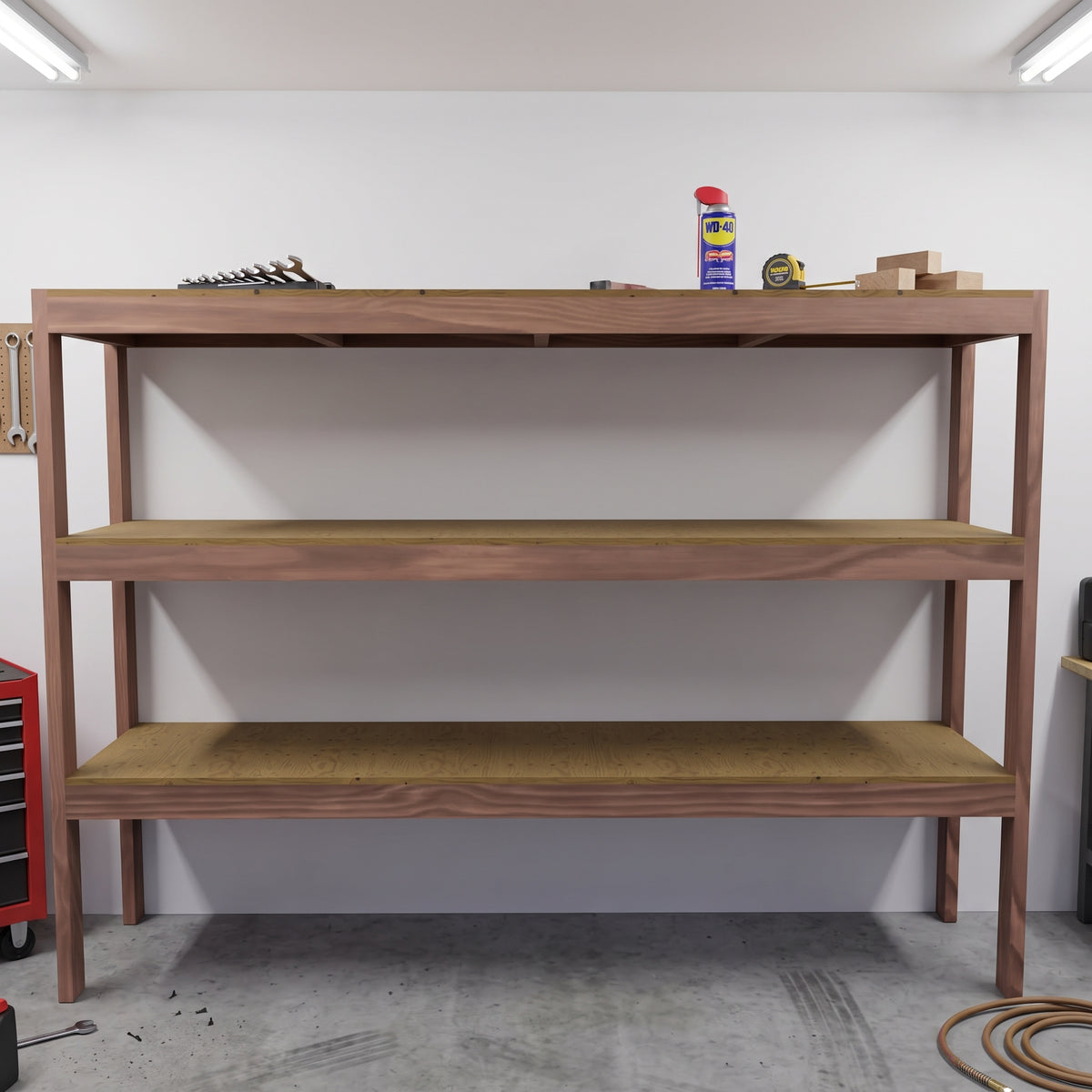

This 3-tier shelving unit is designed for garages, workshops, utility rooms and general storage areas. The simple 2x4 frame construction and full-width plywood shelves provide plenty of practical storage space while keeping the build straightforward.

Finished Size

Overall Width: 99"
Shelf Width: 96"
Depth: 24"
Height: 72"
3 storage levels

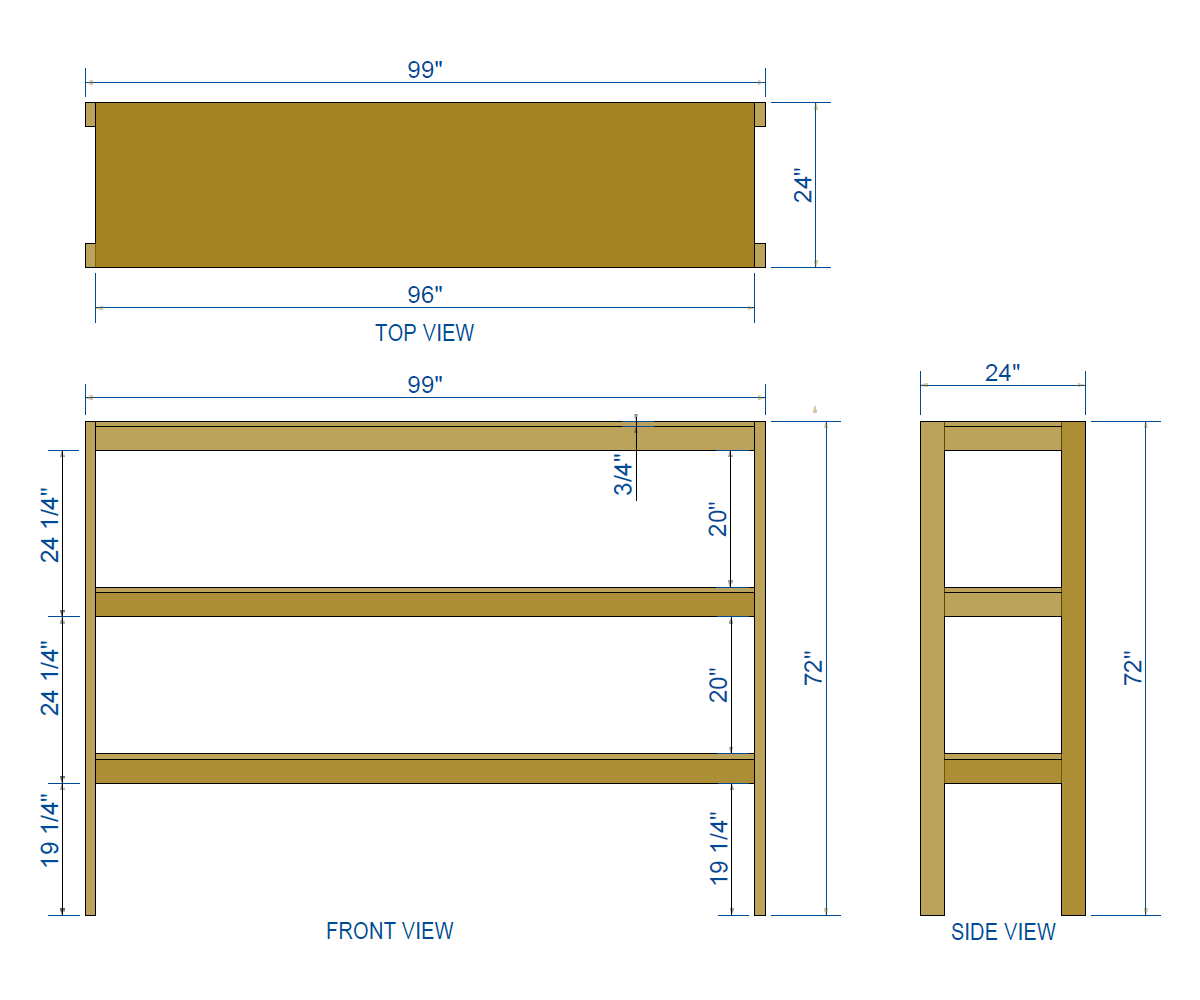

Plan dimensions and shelf layout are shown in the included drawings.

Main Materials

2x4 lumber
3/4" plywood
2-1/2" wood screws
1-1/2" brad nails
Wood glue

The material and cutting lists specify 13 pieces of 8 ft 2x4 lumber and two 4' × 8' sheets of 3/4" plywood.

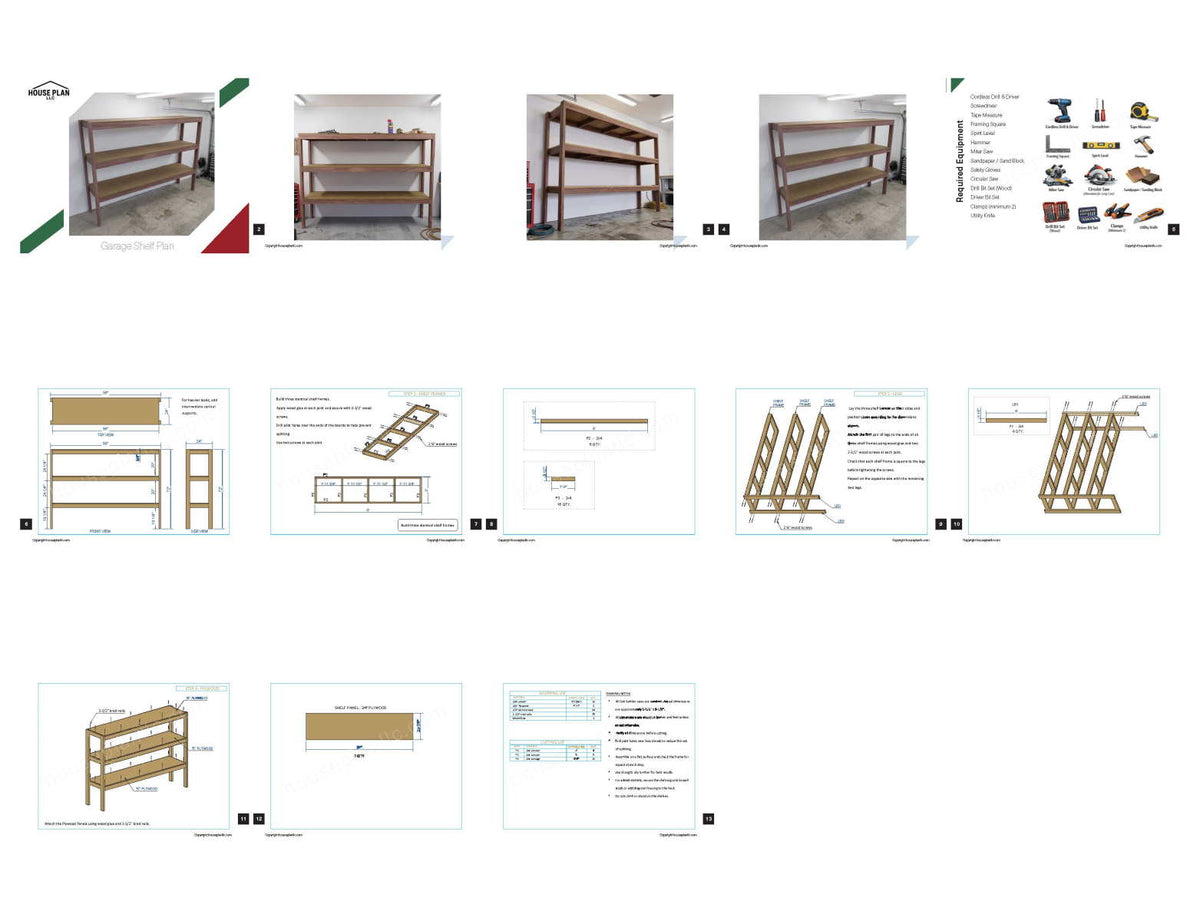

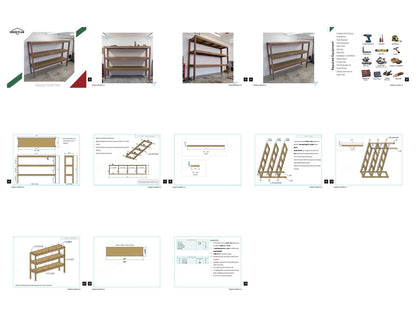

The PDF includes

Overall dimensions
Required tools
Shopping list
Cutting list
Shelf frame assembly
Leg installation
Plywood installation
Step-by-step illustrated assembly instructions

The shelf frames are built as three identical assemblies using 2x4 lumber, wood glue and 2-1/2" wood screws.

For additional stability, the plans recommend securing the shelving unit to wall studs or adding diagonal bracing to the back.

DIGITAL PRODUCT ONLY
No physical item will be shipped.
