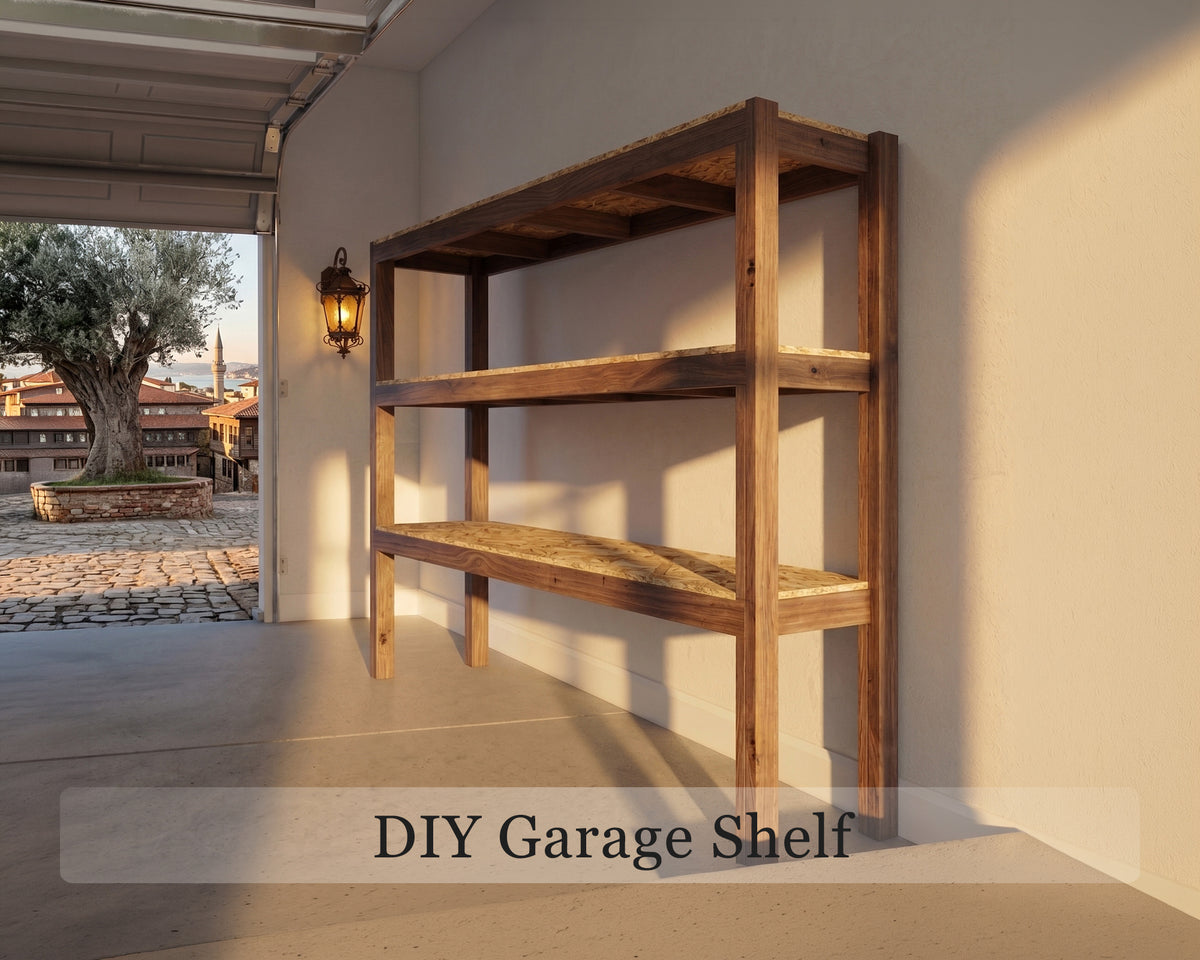

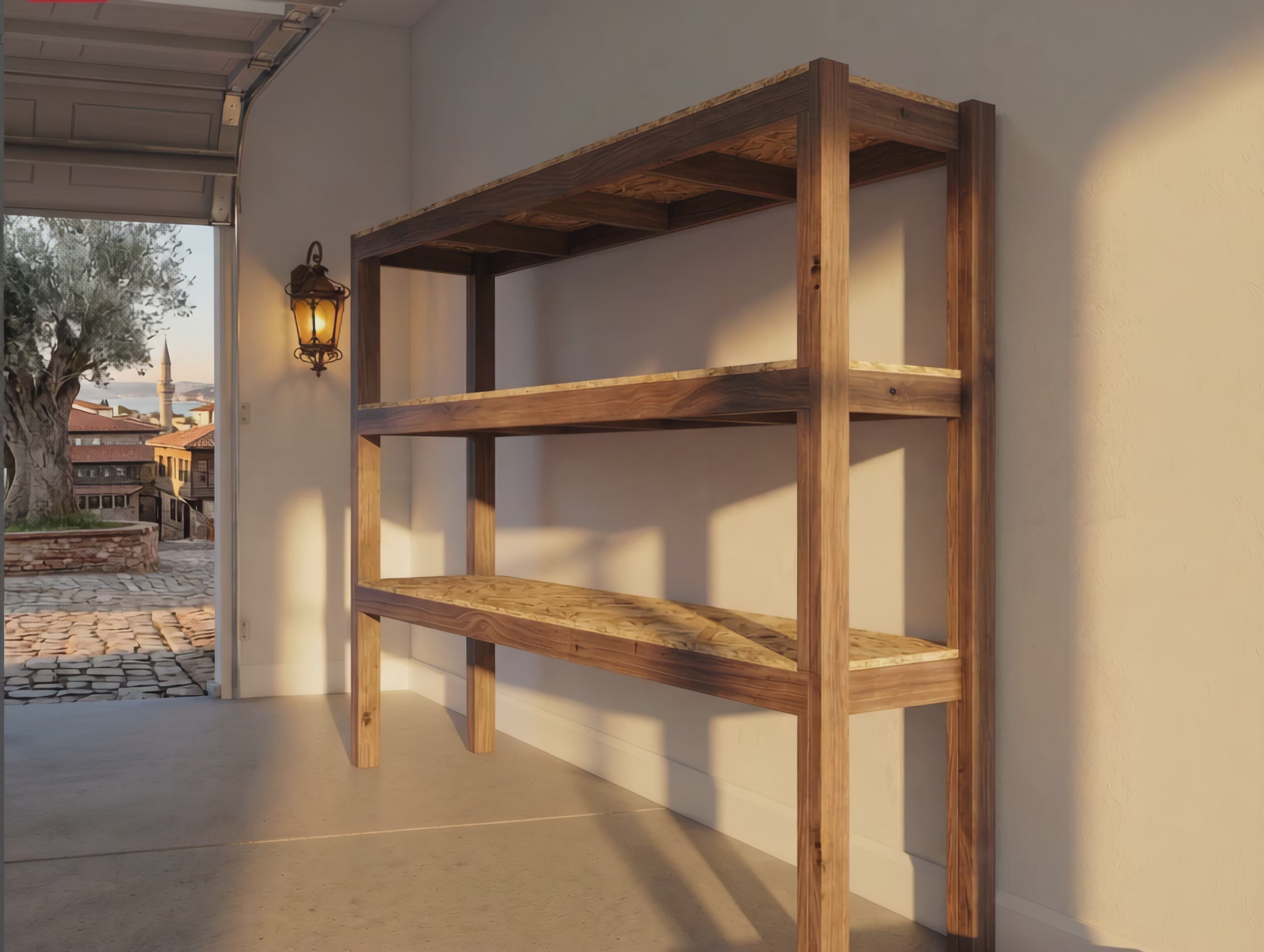

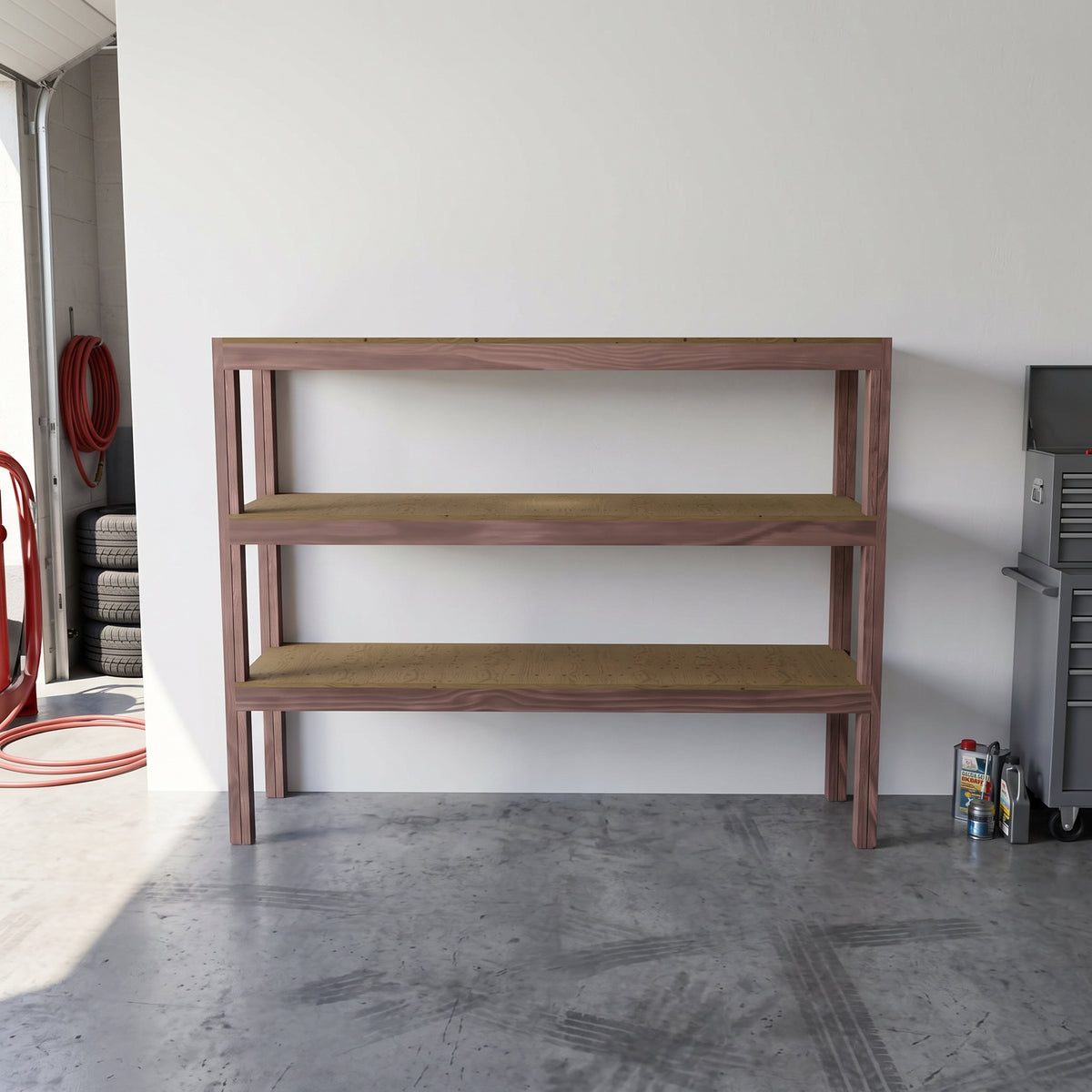

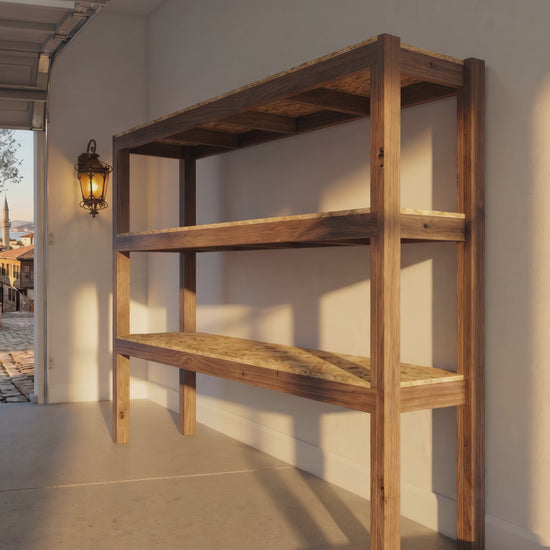

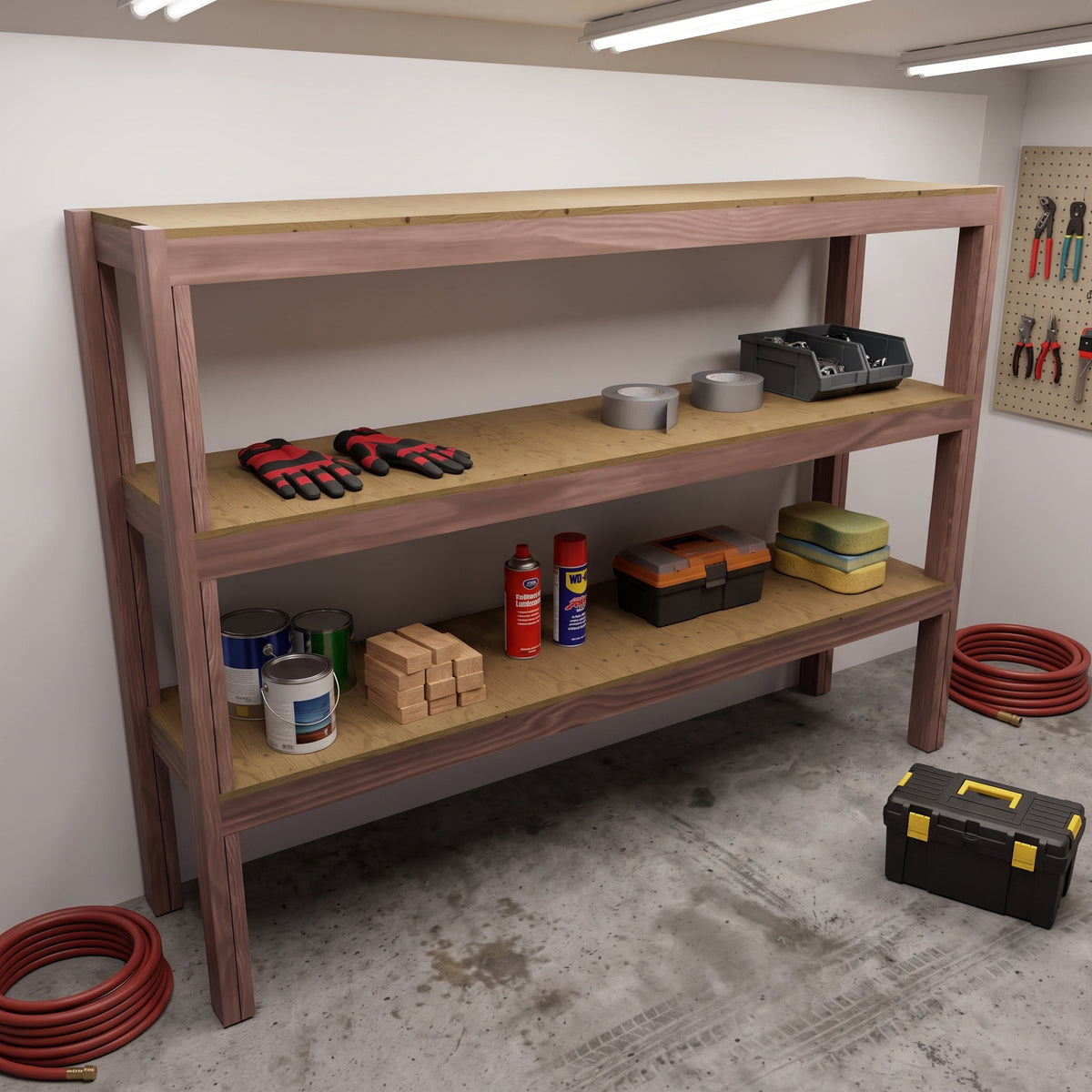

Build a sturdy, reinforced garage shelving unit with these detailed DIY woodworking plans.
This 3-tier garage storage shelf is designed with additional vertical support blocks between the shelf levels, giving the frame extra support while keeping the construction straightforward and based on standard 2x4 lumber.
Finished Size & Features

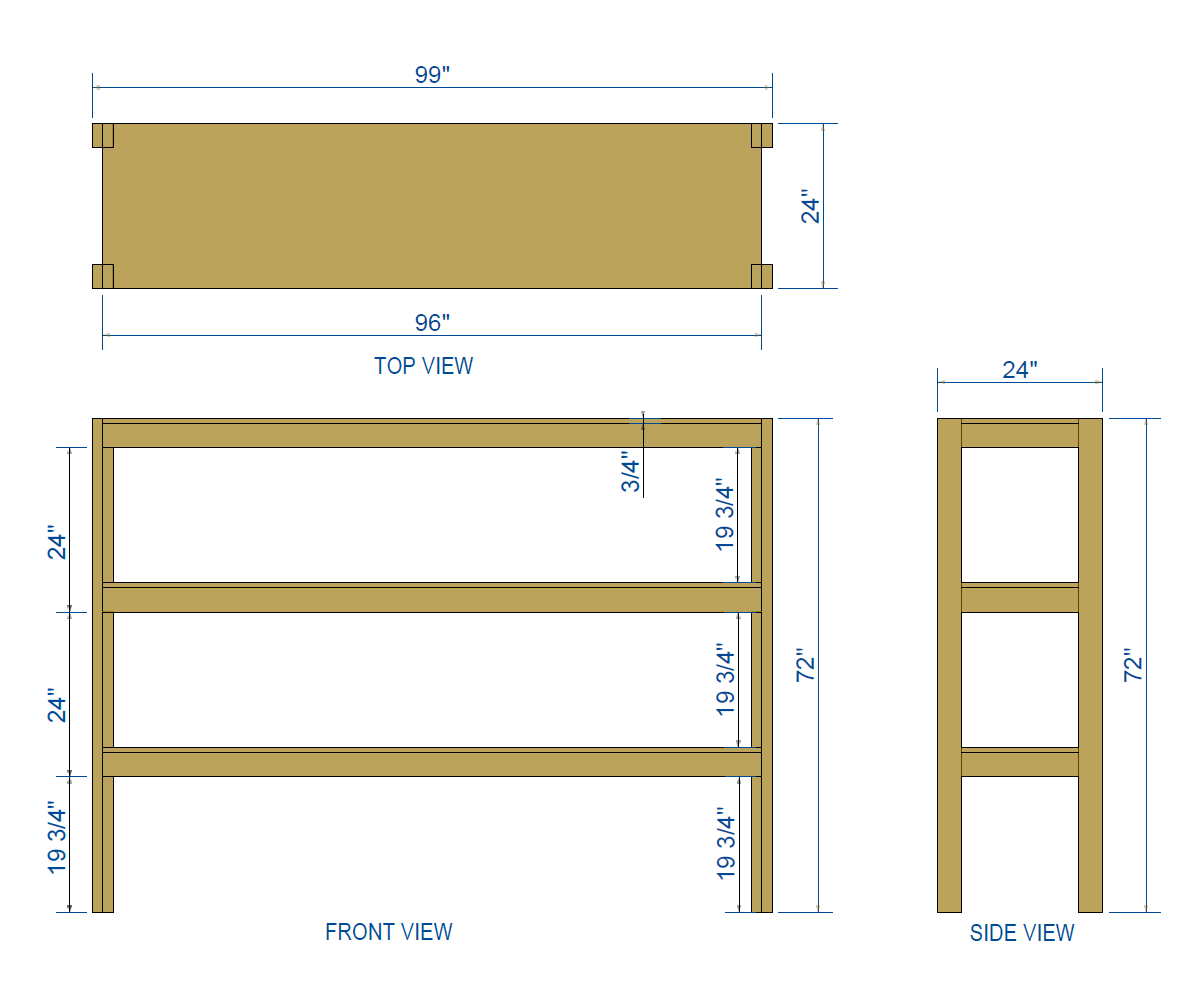

Overall Width: 99" Shelf Width: 96" Depth: 24" Height: 72" 3 storage levels Reinforced with 12 vertical support blocks 3/4" plywood shelf panels Standard 2x4 lumber construction
The main shelf structure uses three identical 2x4 frames assembled with wood glue and 2-1/2" wood screws.
A separate reinforcement step adds 12 vertical 2x4 support blocks between the shelf levels. Each support block is fitted snugly between the adjoining surfaces and secured to the adjacent leg with four 2-1/2" wood screws.

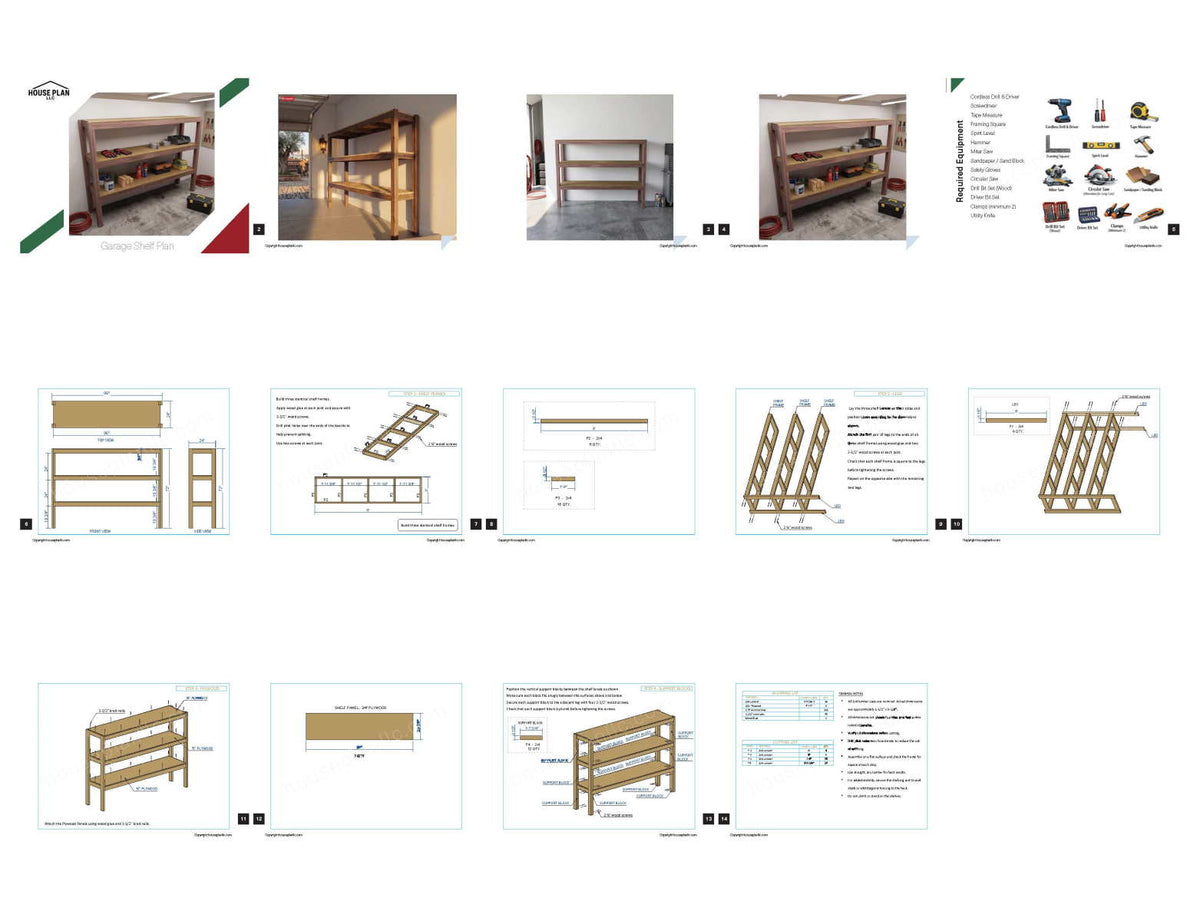

The PDF includes complete dimensions, required tools, cutting diagrams, shopping list, frame assembly, leg installation, plywood installation and the additional support-block assembly step.
Materials include 2x4 lumber, 3/4" plywood, 2-1/2" wood screws, 1-1/2" brad nails and wood glue.

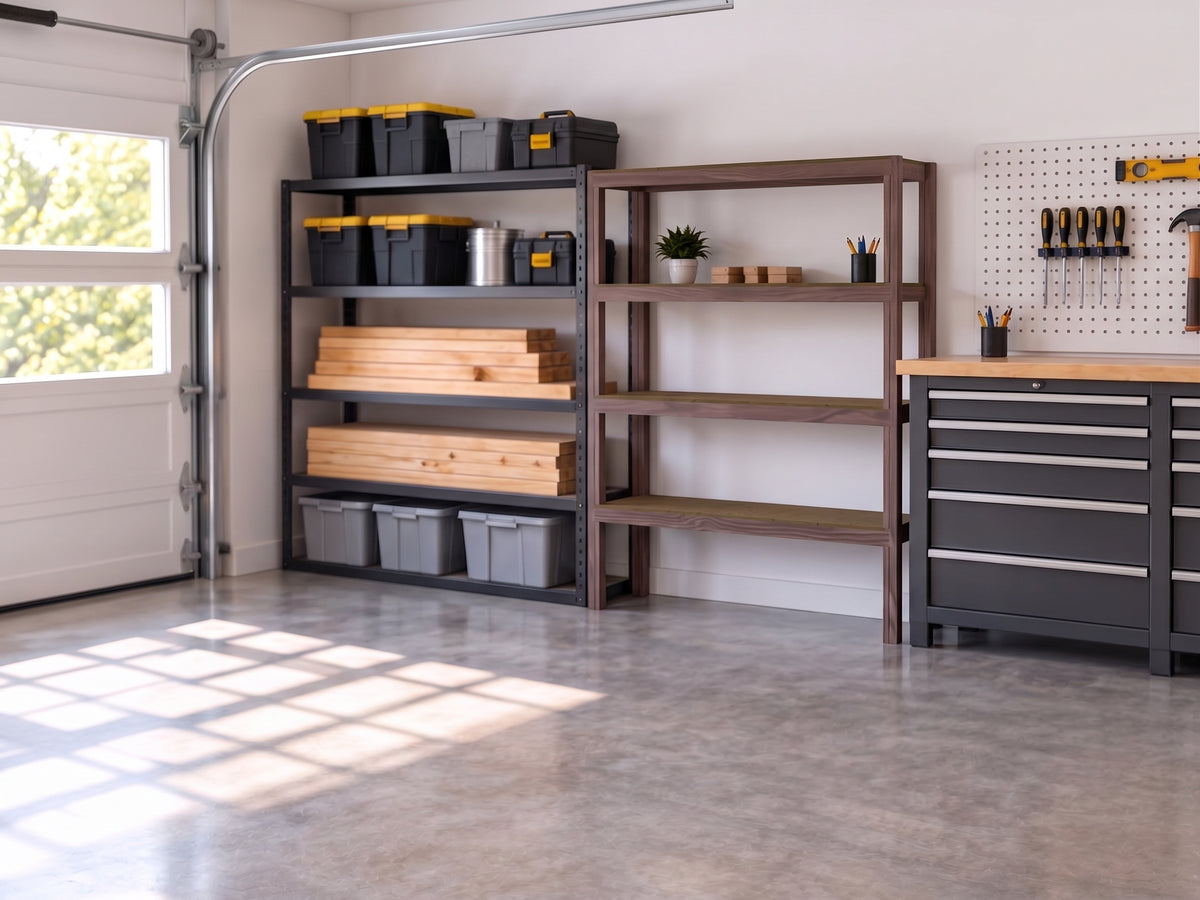

Ideal for garage, workshop, basement or utility-room storage where you want a deeper and more supported shelving design without complicated joinery.
DIGITAL PRODUCT ONLY No physical item will be shipped.
